B&O Beolab Transmitter1多声道无线音频发射器设置说明

用B&O组建多声道家庭影院系统,尤其是第三方的前级功放设备使用B&O Beolab Transmitter1多声道无线音频发射器就很有必要了。

Transmitter1多声道无线音频发射器

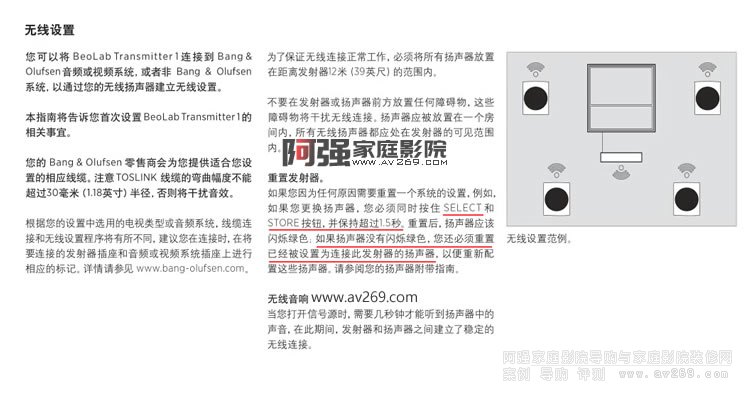

B&O Beolab Transmitter1中文说明书B&O Beolab Transmitter1多声道无线音频发射器设置方法

B&O Beolab Transmitter1应用案例

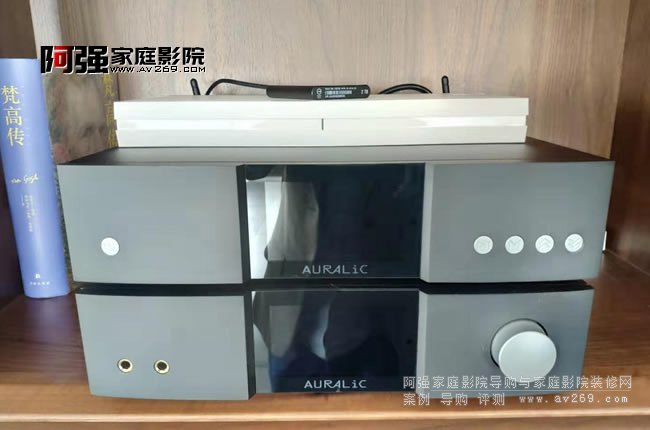

B&O Beolab Transmitter1应用案例一

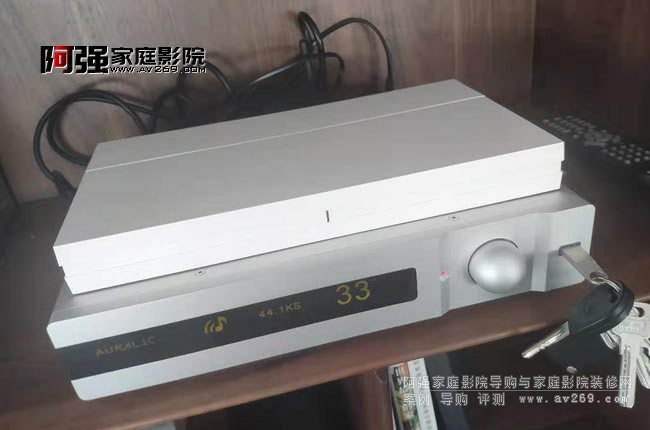

B&O Beolab Transmitter1应用案例B&O Beolab Transmitter1应用案例二

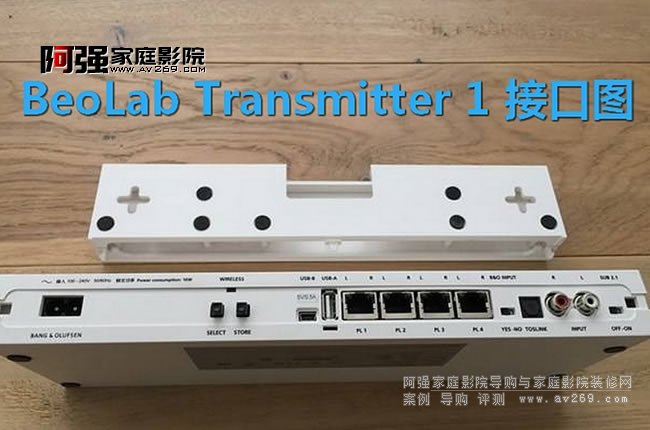

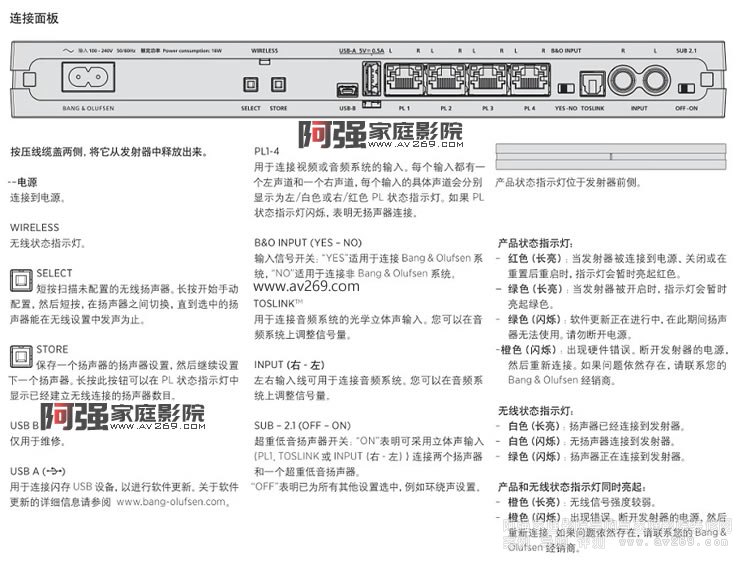

连接
4 x Power Link (up to 8 channels)
2 x RCA connector (L / R)
1 x TOSLINK input (2 channels), Sample rate
32k, 44.1k,  48k, 96k) / PCM16-24 bit
1 x RJ45 LAN (future use)
USB, Type A (software update)
USB, Type B mini.  (service)

Wireless Power Link

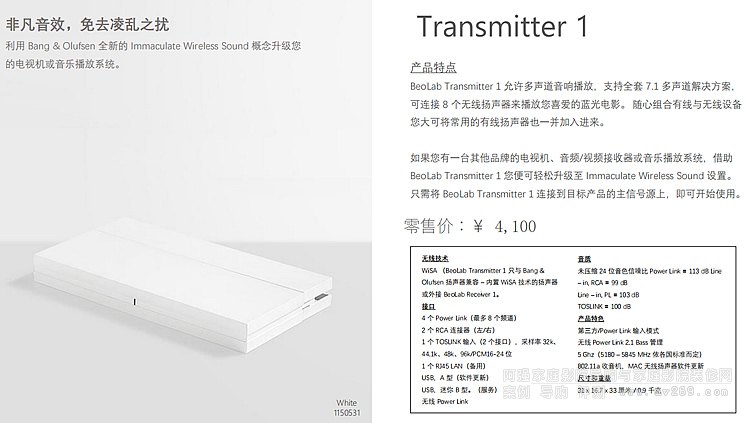

规格
31 x 16.7 x 33 cm /0.9  kg

材质
Composite materials

颜色
White

Sound Performance
Uncompressed 24-bit audio Signal-To-Noise Ratio

Power Link = 113 dB Line – in,

RCA = 99 dB
Line – in, PL = 103 dB
TOSLINK = 100 dB

特色
Third party / Power Link input modes
2.1 Bass management Wireless Power Link
5Ghz (5180 – 5845MHz country dependent)
802.11a radio, proprietary MAC Wireless software update of connected speakers
