JBL极品系列 JBL SCL3 嵌入式音箱
2017-04-27   来源:阿强家庭影院导购网   编者:阿强    查阅:

JBL极品系列 JBL SCL3 嵌入式音箱,美国JBL最新推出的一款极品嵌入式音箱,采用一体式号角高音注模,双5 25英寸中低音单元,特制的安装套件,安装与音效的完美匹配。
JBL极品系列 JBL SCL3 嵌入式音箱,美国JBL最新推出的一款极品嵌入式音箱,采用一体式号角高音注模,双5.25英寸中低音单元,特制的安装套件,安装与音效的完美匹配。JBL SCL3 极品嵌入式音箱JBL SCL3

JBL SCL3


SPECIFICATIONS
PRINT SPECIFICATIONS
Speaker Type: Two-way In-Wall Loudspeaker

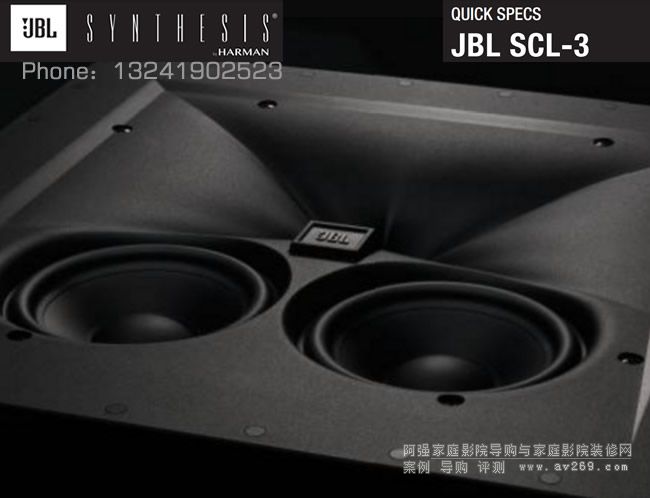

Low Frequency Transducer: Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone woofers
Mid/High Frequency Transducer: D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
Maximum Recommended Amplifier Power: 200 watts RMS• Frequency Response (-6dB on-axis): 65 Hz – 33KHz
Coverage area (-6dB @ 20 KHz): 90 x 60 deg, (-6dB @ 10 KHz): 110 x 90 deg (Hor. x Vert.)
Sensitivity (2.83V@1m): 91dB
Nominal Impedance: 6 Ohm
Crossover Frequencies: 1.3 KHz
Enclosure type: Sealed In-Wall Mount with included back box

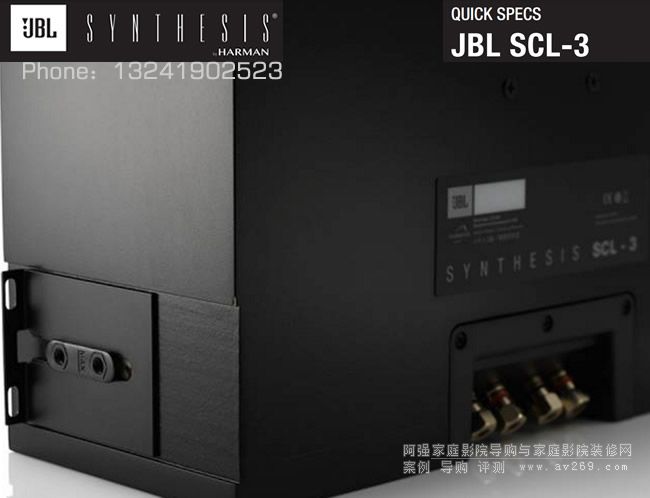

Inputs: Dual Gold-plated Five-way Binding Posts

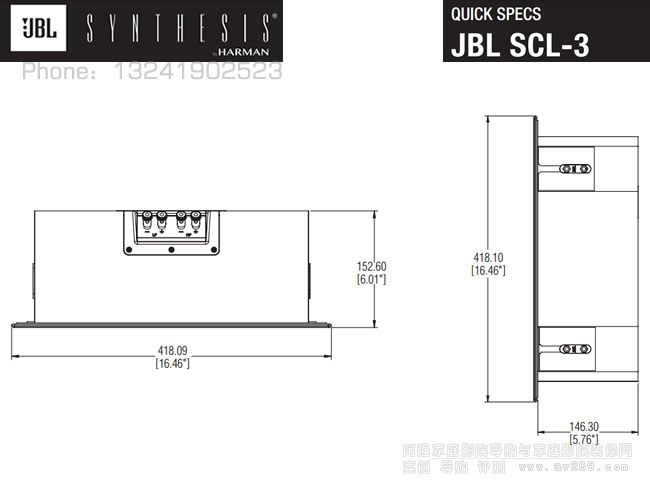

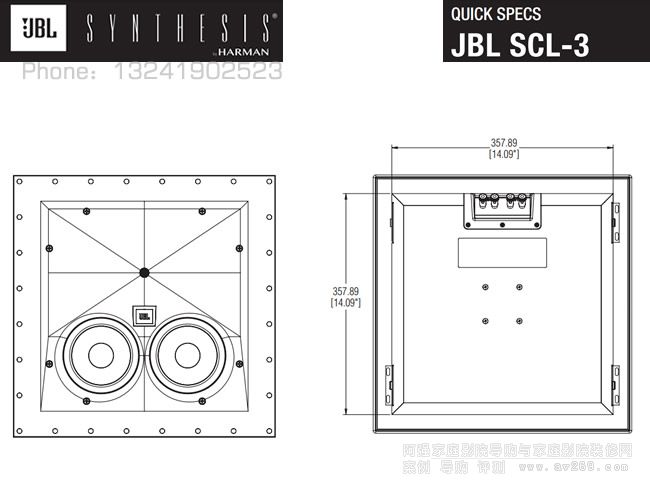

Dimensions (H x W x D): 16.46" x 16.46" x 6.01" (418mm x 418mm x 153mm)
Weight: 24.3 lb (11.02 kg)
Finishes: Matte Black
