JBL极品系列 JBL SCL4 嵌入式音箱
JBL SCL4JBL极品音箱 JBL SCL4



SPECIFICATIONS
PRINT SPECIFICATIONS
Speaker Type: Two-way In-Wall Loudspeaker

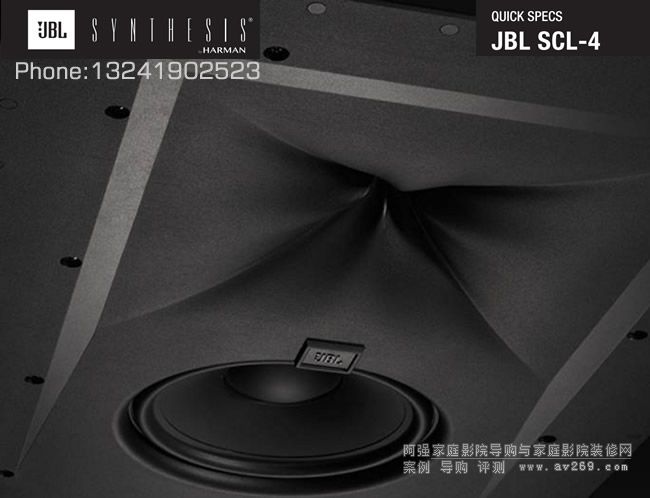

Low Frequency Transducer: 7” (180mm) cast-frame, advanced aluminum matrix cone woofer
Mid/High Frequency Transducer: D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
Maximum Recommended Amplifier Power: 200 watts RMS
Frequency Response (-6dB on-axis): 45 Hz – 33KHz
Coverage area (-6dB @ 20 KHz): 100 x 100 deg, (-6dB @ 10 KHz): 120 x 120 deg (Hor x Vert)
Sensitivity (2.83V@1m): 91dB
Nominal Impedance: 6 Ohm
Crossover Frequencies: 1.3 KHz

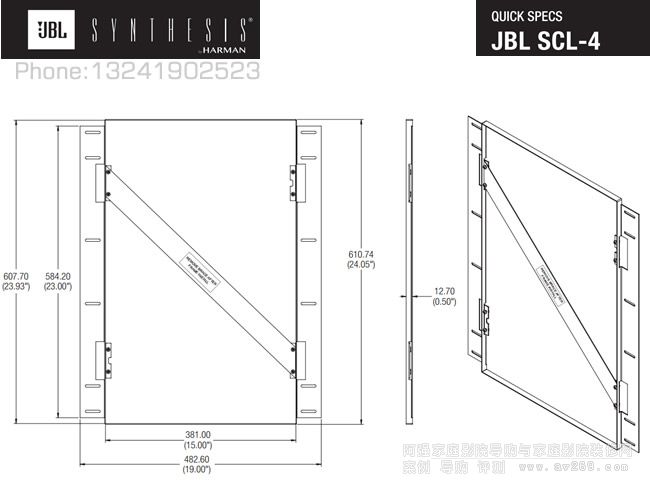

Enclosure type: Sealed In-Wall Mount with included back box

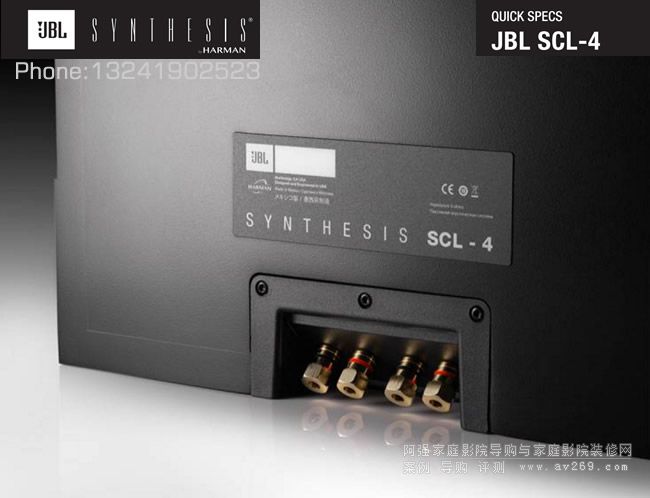

Inputs: Dual Gold-plated Five-way Binding Posts

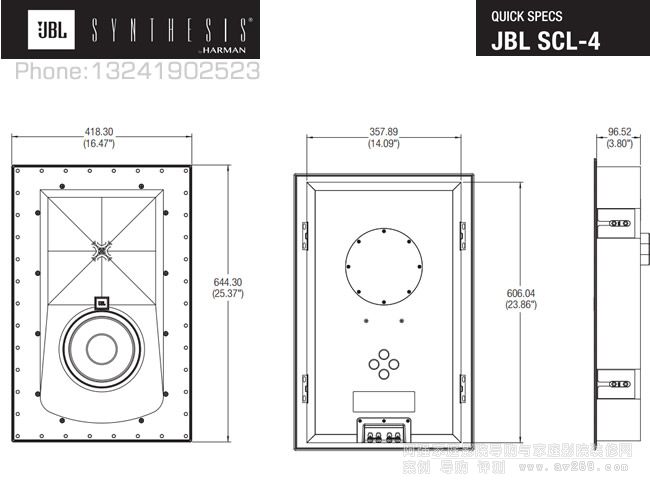

Dimensions (H x W x D): 25" x 16.1" x 3.7" (636mm x 409mm x 93mm)
Weight: 27.6 lb (12.51 kg)
Finishes: Matte Black
