产品价格参考/个￥10800.00

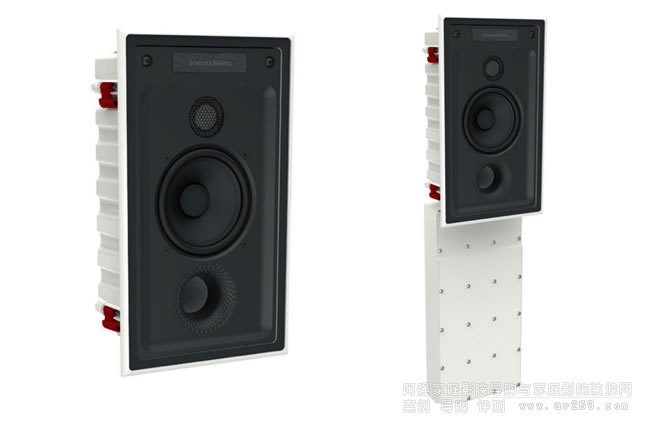

英国B&W CWM7.5 S2嵌入式音箱
两路入墙式扬声器
1x ø25mm (1 in) CarbonDome 碳膜半球型高音
1x ø125mm (5 in) Continuum™音盆中低音
包括可选装空间箱
Technical Specifications
Technical features Carbon Dome tweeter
Continuum mid/bass
Flowport™
Description 2-way in-wall system
Drive units 1x ø25mm (1 in) Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone mid/bass
Frequency range (-6dB) -6dB at 43Hz and 33kHz
Frequency Response -3dB 45Hz - 28kHz ±3dB
Sensitivity 86dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance 8Ω (minimum 3.8Ω)
Recommended amplifier power 25W - 150W into 8Ω on unclipped programme

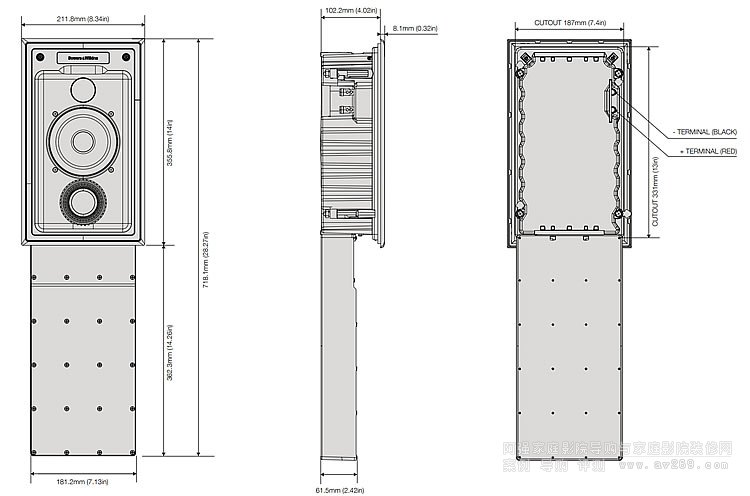

Frame height 356mm (14in)
Frame width 212mm (8.5in)
Depth (behind surface) 102mm (4in)
Cut-out height 331mm (13in)
Cut-out width 187mm (7.4in)
Cut-out height w/PMK 336mm (13.2in)
Cut-out width w/PMK 192mm (7.6in)

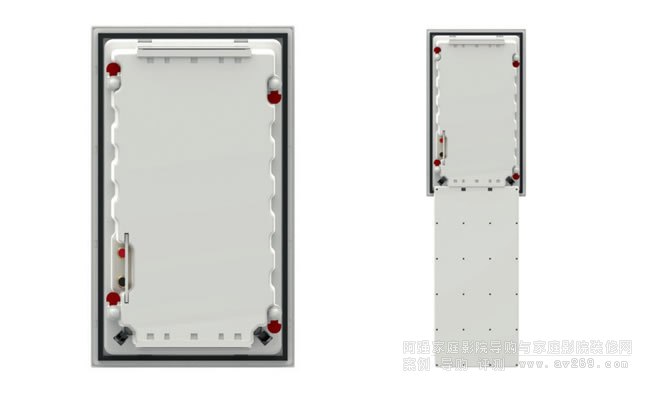

Reservoir box height 385mm (15.2in)
Reservoir box width 181mm (7.1in)
Protrusion 8mm (0.32in)
PMK 7.5W
Net weight 3.8kg (8.38 lb)
Finishes Back box: White
Grille: White
