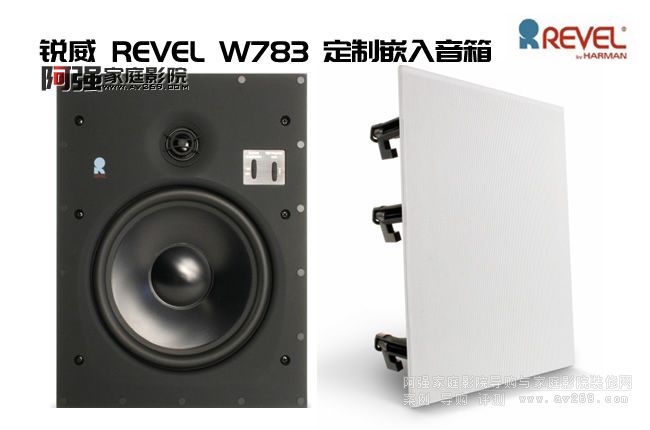

锐威W783入墙音箱参数指标
建议使用放大器功率:10-150 watts RMS
系统灵敏度:89db/2.83v/m
系统阻抗8Ohms
低音单元8“(203mm)黑色纳米颗粒涂层陶瓷复合(MCC锥盆、聚合物铸造框架低音扬声器
高音单元:1“(25.4mm)铝振膜球顶外置波号辐射的高音扬声器
高音电平控制:3阶
外形尺寸:高330mmx宽254mm
低音边界补偿：开/关
安装深度:96mm
开孔尺寸:高303mmx宽227mm
重量:2.9kg(净重)、3.5kg(含包装)
Specifications
DESCRIPTION
8" In-Wall Loudspeaker
HIGH-FREQUENCY DRIVER COMPONENTS
1" aluminum dome swiveling high-output tweeter with waveguide
LOW-FREQUENCY DRIVER COMPONENTS
8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
LOW FREQUENCY EXTENSION
High Frequency Extension: 3-position HF level contr /Low Frequency Extension: LF boundary compensation
MOUNTING
C-2 mounting mechanism • Compatible with wall material thickness range: 0.5" – 1.0" (1.3 cm – 2.5 cm)
DEPTH
Mounting depth: 3.7" (9.4 cm)
WEIGHT
7.1 lb (3.2 kg) / Shipping weight: 8.6 lb (3.9 kg)
FEATURES
Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm
