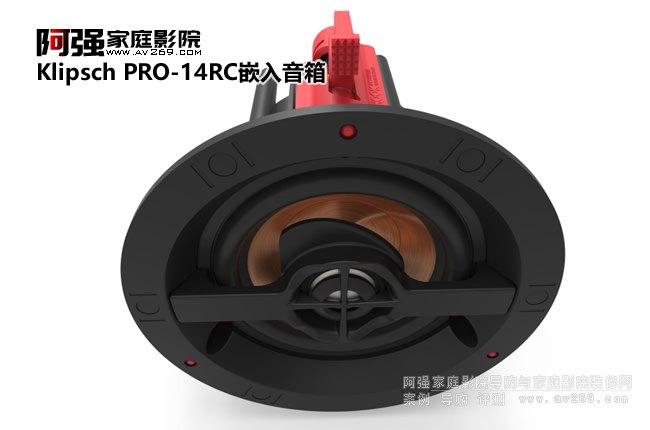

Klipsch PRO-14RC 杰士音箱 开孔直径11cm即可
频率响应：72Hz-23KHz ± 3dB
功率：30/120W 灵敏度：88dB@2.83V/1m
喇叭单元：1"铝制高音配90*90°Tractrix®号角，3.5"IMG低音
阻抗：8 ohms
外形尺寸（直径*深度）：12.1*10.4cm
开孔尺寸（直径）：10.8cm
SECUREFIT™安装构件，圆形和方形网罩
Utilizing a custom-designed tweeter bridge with “shark fin” and asymmetric dimples to diffuse standing waves, the PRO-14RC provides crisp and clear audio over a wider range from only a 4.9” overall grille footprint. The Sky Hook® patented Cinch by Swarm Installation System provides incredibly fast and secure installations saving both time and money. With both round and square flat magnetic grilles included in the box, the new PRO-14RC minimal footprint in-ceiling speaker provides installers the ideal distributed audio solution that even interior designers will love.
Features:
3.5" Injection Molded Graphite (IMG) Woofer
1” Fixed Aluminum Dome FEA Optimized Tweeter
Exclusive, modular Patented Sky Hook® Cinch by Swarm
Bezel-Free square and round paintable magnetic grilles
Magnetic paint shield
Minimal footprint
SPECIFICATIONS
Frequency Range 92Hz - 23kHz +/- 3dB
High Frequency Driver 1” Fixed Aluminum Dome FEA Optimize Tweeter
Low Frequency Driver 3.5" (8.89cm) IMG Woofer
Sensitivity 88 dB @ 2.83V / 1m
Coverage Angle 110°
Power Handling 30W RMS / 120W Peak
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 4.86” W x 4.86” H x 4.5” D (12.3cm H x 12.3cm W x 11.3cm D)
Mounting Depth 4.34” (11.03cm)
Cutout Dimensions 4.25” (10.8cm)
Product Weight 4 lbs (1.8kg)
Included Round Grille, Square Grille, Paint Shield
Installation Kit IK-400-C (Sold Separately)
