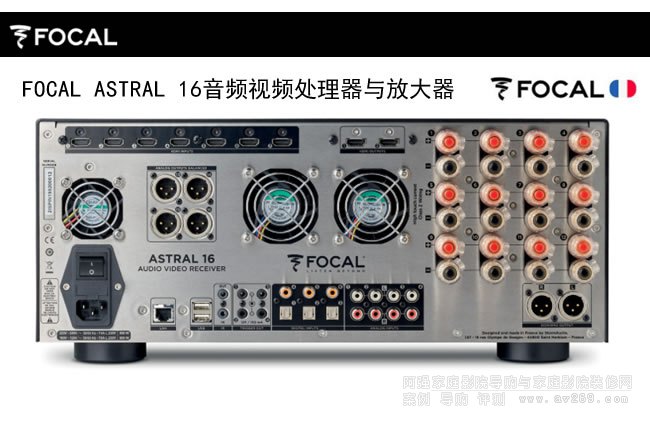

劲浪功放 FOCAS ASTRAL 16音频视频处理器与放大器
真正的指挥家能够让他的交响乐队发挥出最佳水平，Astral 16也是如此。它可以在一个令人惊艳的家庭影院装置中完美协调各个部分，让让高保真和壁式/天花板音响呈天花板音响呈现出最佳效果。
Astral 16整合了一个D级Pascal Audio放大器，拥有16个频道，其中12个具有放大功能，另外4个为前置放大均衡XLR输出），而且这些频道完全用于表现音频（过滤、均衡、低音管理等）。
如此坚实的底蕴足以带来无可比拟的画质和音质，正式带您踏上沉浸式体验的旅程（支持的取样频率最高可达192kHz）
所有音频格式
Astral 16能覆盖所有音频格式：Dolby Atmos®，DTS:X™，Auro-3D®等。
Astral 16拥有可基于房间特点（通过Dirac Live®进行房间校准）进行调整的技术，而且还提供一个经过校准的测量传声器。您可以对Astral 16进行微调，使其适应所有可能的声音环境和需求。
兼容性
与Control4，Crestron，Savant和RTI 兼容
领先的交互界面系统带来的多种可能性使得Astral 16锦上添花，能够对您所有的音频和视频需求实现完美的无缝遥控
ASTRAL 16
Product Data Sheet
Type 16 channel audio-video processor and amplifier
Main features Compatible formats Dolby Atmos® / DTS:X™ / Auro-3D®
Room Calibration Powered by Dirac Live® : target curve editable from 20Hz
to 20kHz for all channels (including subwoofers), phase
correction full bandwidth 20Hz-20kHz on all channels
(including subwoofers)
"Remote Monitoring" fonction
Multichannel /
Surround Processing
Output channels
Decoding / upmixing channels
Input sampling rate supported
Stereo downmix
Bass management
Multi-subwoofer channels
Multi-way crossover
20 Parametric EQ per channel
16
up to 16 channels
up to 192kHz
fully flexible
Unlimited
(6-12-18-24-36-48dB/oct filter slopes)
HDMI HDMI inputs
HDMI outputs (mirror)
Supported video format
High Dynamic Range
Color Space and Subsampling
Deep Color
Max resolution supported
HDMI
7: HDMI 2.0 / HDCP 2.2
1: HDMI 2.0 / HDCP 2.2 (with eARC)
2: HDMI 2.0 / HDCP 2.2
Up to 4K UHD
HDR10 / HLG
4:4:4, 4:2:2, 4:2:0
12 bpc
4K 60fps 4:4:4 8bpc
3D / 4K / eARC
Audio Inputs Digital input
Analog stereo inputs
3 x coaxial, 3 x optical
4 x RCA inputs
Amplified Audio Outputs Amplified main outputs
Analog main outputs, balanced
Stereo downmix outputs, balanced
Technology
Amplified channels
Continuous power output, per channel, à 0.1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous
Continuous power output, per channel, à 1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous,
SNR (P-rated)
THD (from 1W to P-rated -1dB)
12
4 x XLR
2 x XLR
Class D
12
8Ω / 4Ω / 2.7Ω
200W / 400W / 650W
200W / 350W / 350W
200W / 300W
8Ω / 4Ω / 2.7Ω
250W / 500W / 725W
250W / 500W / 500W
250W / 300W
110dB
<0,03%
Set-Up Management Configurable multi-theater management
Configurable audio zones management
Unlimited Theater and audio zones listening presets
Backup and restore of set-up
Firmware update via USB/network
Control Inputs / Outputs USB type A
Ethernet
Output trigger control
IR remote ports, in/out
2
4 (out)
1 / 1
Control / Custom
Installation
Web-based product configurator
TCP/IP API based control
Focal Remote iPad control application
Home automation
Front panel display
Crestron, Control4, Savant, RTI home automation
TFT 4,3"
Power Supply Voltage range
Type
Range selection
100V to 240V
SMPS
Universal
Supplied with Calibrated measurement microphone and tripod, Dirac
Live license, 32.9ft (10m) cable with infra-red captor,
mounting kit.
Dimensions & weight Net weight – with stands (kg/lbs)
Net weight – with accessories for Rack (kg/lbs)
Dimensions with stands (h x w x d) (cm/inches)
20,0 / 44.1
23,0 / 50.7
19,10 x 47,90 x 49 / 7.52 x 18.86 x 19.29
