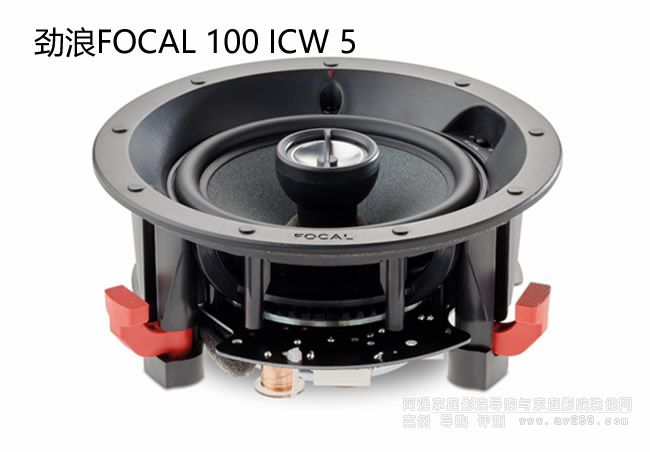

三种用途：分布式系统（走廊，客厅......），立体声系统（卧室，厨房......）和家庭影院系统（专用房间或起居室）。 该产品适用于家中的每个房间，即使在潮湿的环境中，如浴室。 它可以用于墙内或天花板。这款同轴扬声器采用新型铝制倒置式可调高音扬声器，更加紧凑，改善了声音的分散性。 它还配备了一个新的Polyglass锥体（51/8“ - 13厘米）。 新的分频器改善了离轴聆听并避免了“淋浴效应”。
该产品可以安装在任何地方，由于设计紧凑，扬声器驱动器的篮子和底盘被重新设计为单件，还有方形和圆形磁性前格栅，无框架。
100系列产品线可轻松为您的家带来意想不到的音乐效果。 让您自己对这款产品背后的技术感到惊讶，这是一款高效的设计和理想的功
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille

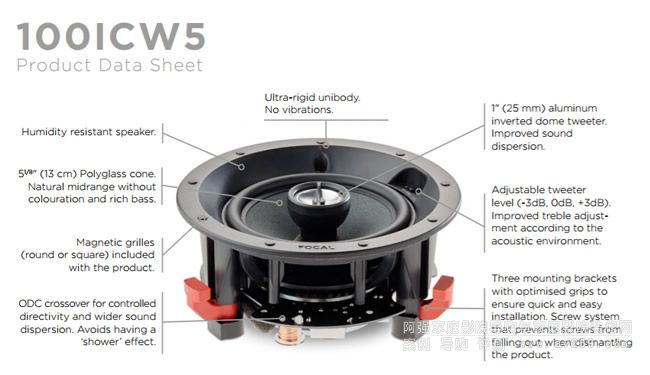

Technical Specifications 51/8" (13 cm) Polyglass cone. Natural midrange without colouration and rich bass. Humidity resistant speaker. ODC crossover for controlled directivity and wider sound dispersion. Avoids having a ‘shower’ effect. Adjustable tweeter level (-3dB, 0dB, +3dB). Improved treble adjustment according to the acoustic environment. Three mounting brackets with optimised grips to ensure quick and easy installation. Screw system that prevents screws from falling out when dismantling the product. Ultra-rigid unibody. No vibrations. 1" (25 mm) aluminum inverted dome tweeter. Improved sound dispersion. Magnetic grilles (round or square) included with the product. Type in-wall/In-celling - 2-way coaxial Drivers 5" (13cm) Polyglass Midbass. 1" (25mm) AI inverted dome Tweeter Sensitivity (2.83V/1m) 88dB Frequency response (+/-3dB) 65Hz-23kHz Low frequency point (-6dB) 56Hz Nominal impedance 8Ώ Minimal impedance 7,3Ώ Recommended amplifier power 15-100W External dimensions (Ø/Depth) 71/4"x327/64" (184x87mm) Cut-Out diameter 619/64" (160mm) Depth from wall 315/64" (82mm) Net weight (with front grille) 3.19lbs (1.45kg) Packing dimensions (WxDxH) 95/8" x 95/8" x 65/16" (245x245x161mm) Total weight (with packaging) 4.52lbs (2.05kg)
