产品价格参考/￥39000.00

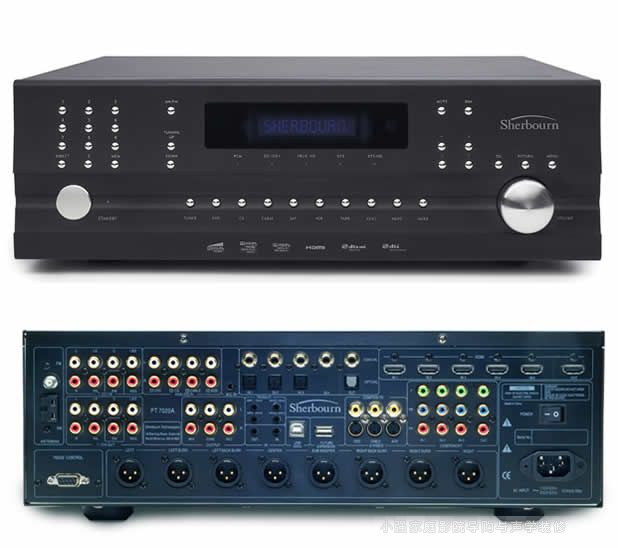

美国世博Sherbourn PT-7020A七声道次世代HD解码前级 全平衡输出
Twin Cirrus? 32 bit dual core DSP’s. Cirrus 497004 & 495315 for true 192K performance
Decoding support forDolby Digital, Dolby Digital EX, Dolby Digital Plus,Dolby Digital True HD, Dolby PLIIx, DTS, DTSES,DTS HD,DTS Master Audio, DTS Neo 6, SPDIF, PCM 8 channel(note: some audio formats are only supported via HDMI)
Genesis? Torino high performance video scaling engine for true 10-bit processing
Integrated 3D video decoder
Faroudja DCDi Cinema? Format Conversion and Truelife? video enhancer
Automatic Cirrus/Sherbourn multi-channel room correction and automatic loudspeaker setup. Calibrated measurement microphone included.
Quadruple bass manager with independently selectable high and low pass frequencies from 40hz – 160hz
Balanced subwoofer output
All legacy video inputs can be scaled and output over HDMI at up to 1080p
HDMI sources can be format converted to component video up to 1080i
Intuitive, full color graphical OSD with adjustable transparency presented over live video, including HDMI
HDMI 1.3a Deep Color compliant
All inputs are assignable and feature input labeling, selectable decode modes, selectable triggers, etc.
Independent graphic EQ with global bass and treble controls by channel groupings
0.5dB level trims
High voltage, low impedance main analog outputs (7 VRMS)
RS-232 controllable
5 - HDMI inputs and 1 HDMI output
3- composite video inputs (RCA)
3 - S-video inputs (S-video mini DIN)
3 - component video inputs (RCA)
1 - component video output (RCA)
4 - stereo analog audio inputs (RCA)
1 - 7.1 analog input set (RCA)
1 - 7.1 analog output set (RCA)
4 - coaxial digital inputs, (RCA)
3 - optical digital inputs (Toslink)
1- coax digital audio output (RCA)
1- optical digital audio output (Toslink)
1 - Stereo or 2 channel analog multi channel mix down output for fixed level monitoring (RCA)
1- stereo analog variable and independent Zone 2 output (RCA)
1 - stereo analog fixed level record output (RCA)
High performance AM/FM tuner with 24 FM and 6 AM presets
3 - assignable trigger outputs Movie/Music/Amp (3.5mm mini)
1- IR input (3.5mm mini)
1 - IR output (3.5mm mini)
1. Microphone input (3.5mm stereo mini)
1- USB data input (for software upgrades only)
Size: 17” W x 3 7/8” H x 13” D
